OFFSET PRINTING BLANKETS

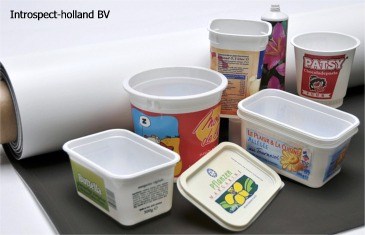

Introspect-Holland BV is a supplyer of a unique compressible printing blanket

consisting entiry of extruded polyester polyurethane. Polyrint blanket is in use

daily around the World in Packaging industry wherever offset letterpress is used

to print on rigid-walled, pre-formed plastic containers.

POLYPRINT BENEFITS:

# Poylurethane is a highly durable and abrasion resistant  material and

# ideally suited to long print runs.

# Open-cell Compressible structure deforms to enable printing of oneven

# wall  thicknisesses on thermo-formed cups

# Resistant to both UV and  IR curing inks

# a White printing surface enabling easy of set up

# Accurate registration

# Non-directional, can be cut either way round reducing wastage

# Good anti-static properties-less lint build up - easy to clean

# Less need for wash-ups than with traditional  rubber blankets

APPLICATIONS:

• Suitable for printing on a variety of substrates: PP, PS, HIPS, ABS,
• HDPE, LDPE e.o.plastics

• For printing on rigid-walled pre-formed plastic containers, both round

• and out-of-round

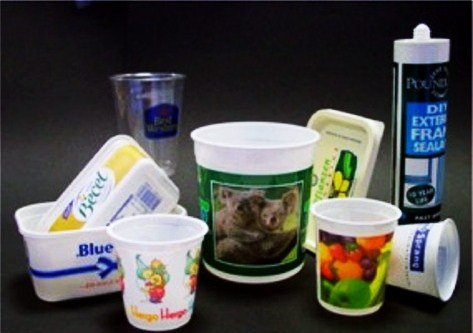

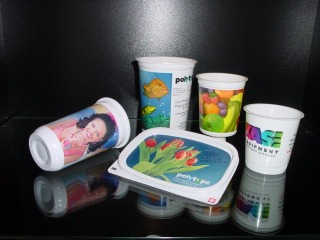

• Such as stadium cups, yoghurt pots, paint pails, noodle pots and

• yellow fat  containers

PRINTINGMACHINES:

• Van Dam, Polytype, Kase, Desco, Moss, Omso,

• Kohoku Seiko  and Tsung Sheng machines.

WASHES:

•  Isopropyl alcohol (IPA) is recommended.

 1) Top layer

 2) Substrate

 3) Adhesive tape

TECHNICAL DETAILS:

Construction:          Aromatic polyester polyurethane

Structure:                Open-cell compressible

Shore-hardness:    62 shore A

Density (gm/cm2): Range 0.47-0.54

Colour:                       Smooth, white surface-dark grey substrate

Nominal thickniss:  Available in 5 thicknesses:

                                    1.40mm/1.90mm/3.20mm/3.50mm & 3.90mm

Gauge tolerance:    +/-0.05mm within an individual Roll

Gauge variation:     +/-0.05mm batch-to-batch

Tariff No.:                3921 13 10

Roll width/length:

1.40&1.90 - 1150mmx25m, 3.20&3.50&3.90 - 1000mmx10m
